Manufacturing Capabilities

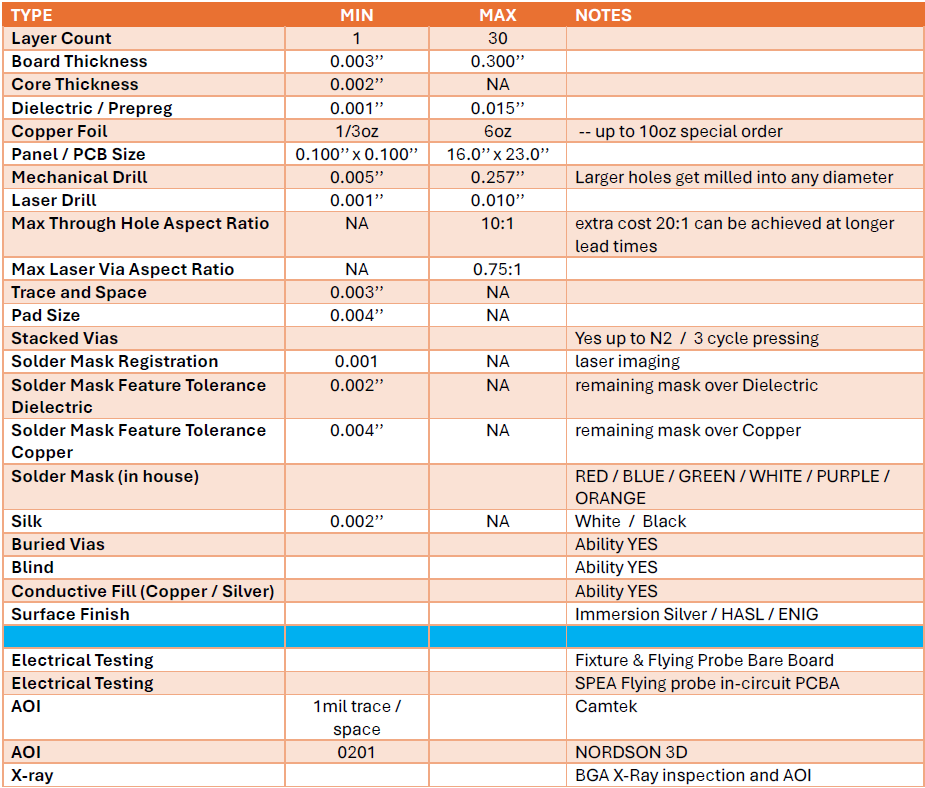

PCB Types Offered
► Rigid PCBs
► Rigid / Flex PCBs
► High-Density Interconnect (HDI)
PCB Types Offered
► Rigid PCBs
► Rigid / Flex PCBs
► High-Density Interconnect (HDI)
Multiple Samsung PNP machines for large number of different part types
Mycronics MYDATA fully automatic paste metal printer. No stencil required for rapid proto-typing
2025 10-zone reflow oven with automatic profiling
Aqueous Technologies Automatic Flux Cleaner / Post Assembly
3D AOI Testing done on all assemblies
--included free
Conformal Coating Spray Machine
Depanelization of finished assemblies

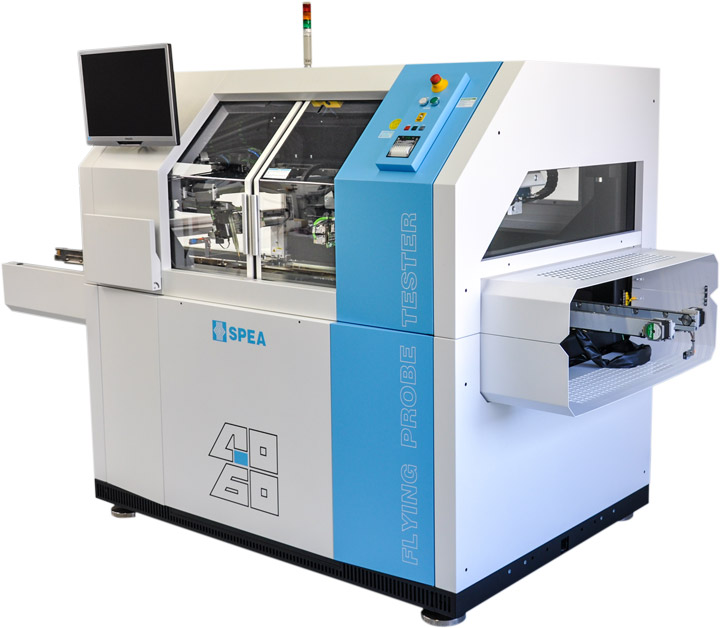

Full in-circuit testing of finished assemblies
Cross Sectioning of Blind / Buried / Through Holes -- Example in next slide =>

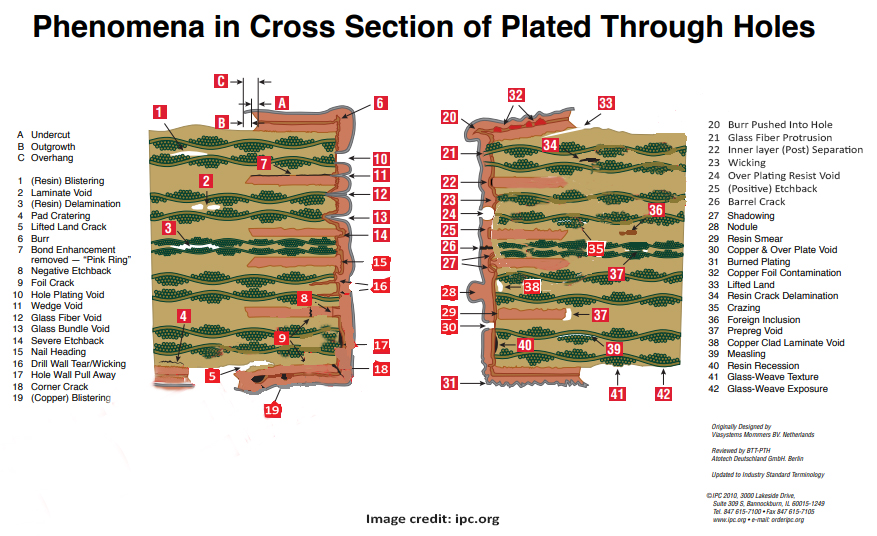

IPC classification chart of possible flaws -- Every Multi-Layer job goes through thorough scrutiny.
X-Strata920 XRF non intrusive surface finish IPC testing

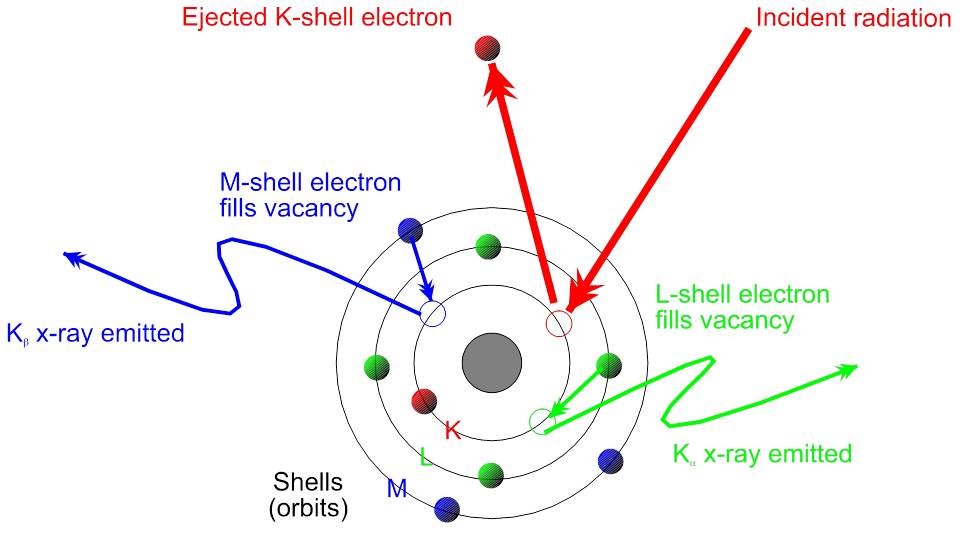

Elemental composition of materials analyzed to measure inner and outer shell electrons measuring the energy released and their intensities unique to each element.
